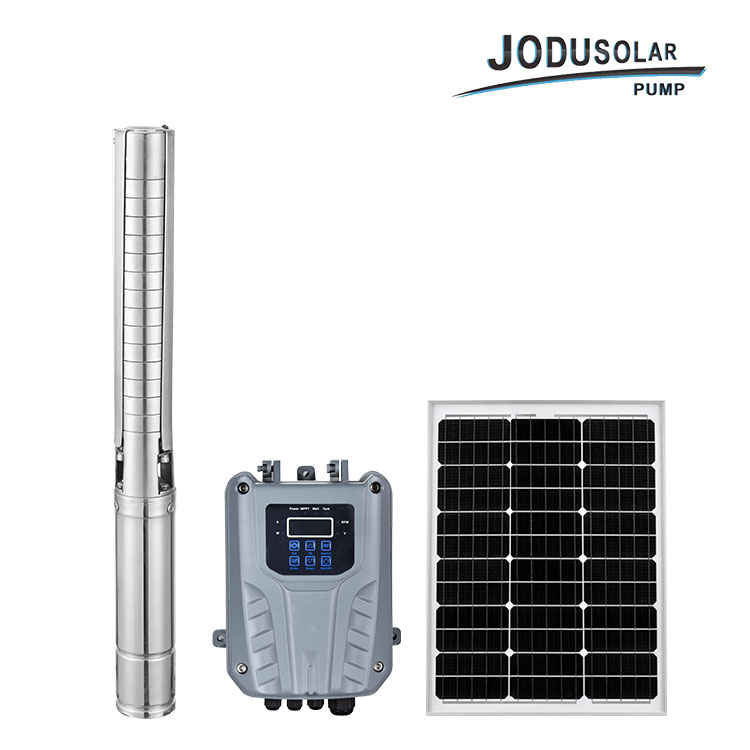

3inch AC/DC 750W-1100W STAINLESS STEEL BRUSHLESS SOLAR PUMP

Product introduction：

Complete industrial chain--from castings to finished pumps.
Strong R&D team,unique 3 steps tests,including motor test,pump test,and overall unit test to guarantee the quality.
Market network:Covering more than 50 countries and areas around the world.
Provide good pre-sales guidance and after-sales service.

3inch AC/DC 750W-1100W STAINLESS STEEL BRUSHLESS SOLAR PUMP IMPELLER

Categories	DC Brushless Submersible Solar Pump
Brand	JODU
Model	3inch AC/DC 750W-1100W
Type	3 inch solar pump with stainless steel impeller
Material	stainless steel
Package type	wooden case
Application	Poultry Farming,Irrigation,Household water intake
Warranty	2 years
Certificate	CE

3JDS4 SERIES

Brushless Solar Pump With Plastic Impller

1	OUTLET	11	STATOR	21	IMPELLER
2	O-RING	12	LOWER COVER	22	PUMP FRAME
3	UPPER BUCKLE	13	OIL CUP	23	SHAFT SLEEVE
4	PUMP SHAFT	14	OILER CAP	24	BRACKET
5	CABLE LAYERING	15	JUMP RING	25	RABBER BEARING
6	COUPLING	16	VALVE ELEMENT	26	INLET
7	LOWER BUCKLE	17	VALVE SEAT	27	NET BAR
8	MECHANICAL SEAL	18	CABLE	28	JILT SAND SEAT
9	BEARING	19	DIFFUSER	29	OIL CYLINDER
10	ROTOR	20	WEARPROOF RING	30	O-RING
				31	MOTOR FRAME

Feature And Application Of 3inch AC/DC 750W-1100W STAINLESS STEEL BRUSHLESS SOLAR PUMP：

MPPT solar pump inverter,the highest solar utilization rate

Waterproof and sealed:double sealing effect,Alloy mechanical seal,
long life and reliable operation

Digital display of power,voltage,current, speed and other working conditions

High/low voltage protection,
Over current/overload protection

HOW TO CHOOSE A PUMP

Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?

Compare your requirement with our product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.

Calculate Method:
Actual Pump Head:H1+H2+H3

--------------------------------------

For Example:

H1=10m    H2=30m     H3=50m

H=H1+H2+H3/10

Actual Pump Head is 45m

PRODUCT PACKAGING

What we get for you:(Package Include)

- 1 x3inch AC/DC 750W-1100W STAINLESS STEEL BRUSHLESS SOLAR PUMP with one 2m blue flat cable
- 1 x Pump controler with MPPT function
- 1 x float switch (sensor for tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof

What You need to get by yourself:(Package DO NOT Include)

- Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.
- Poly pipe from pump to water tank. ( recommend  0.75inch or over diameter poly pipe)
- Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.

PACKAGING PROCESS

CONTROLLER INTERNAL WIRING DIAGRAM

HOW TO CHOOSE SOLAR PANEL

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 3JDC4-20-24-200 model matches the solar panel voltage between 16V～50V.

3JDS4-105-110-750-A/D

3JDS4-150-150-1100-A/D

FAQ:

Q1 What's your MOQ?
A:Trial sample order is OK.

---

Q2 What's your payment terms?

A: T/T, L/C, D/P.

---

Q3 What is the delivery time?

A: Sample order needs 5-10 days, mass quantity order needs 25-30 days after receiving your advanced deposit.

---

Q4 Can I do OEM brand?

A:Yes, welcome your OEM.

---

Q5 How to buy our 3inch AC/DC 750W-1100W STAINLESS STEEL BRUSHLESS SOLAR PUMP ?

A: Some information need to know:
(1)Application;
(2)Average water consumption;
(3)Max. head(the height from the lowest water source to the storage tank.)
(4)That's complicated, just contact me.
