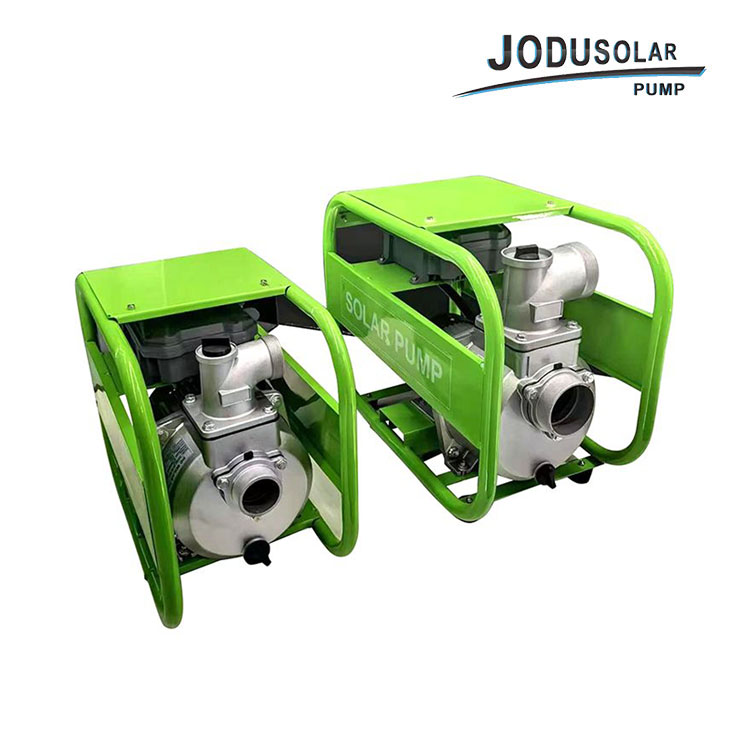

Dual Mode Surface Solar Water Pump 1100W for farm irrigatio

Product introduction：

Jodu Pump is one of the famous China Dual Mode Surface Solar Water Pump 1100W for farm irrigatio manufacturers and suppliers. Our factory specializes in manufacturing of Dual Mode Surface Solar Water Pump 1100W for farm irrigatio. Welcome to buy Dual Mode Surface Solar Water Pump 1100W for farm irrigatio from us. Every request from customers is being replied within 24 hours.

Dual Mode Surface Solar Water Pump 1100W for farm irrigatio

4JDS-AD 3KW SERIES

Brushless Salar Pump With Stainless Steel Impller

ZQD/ZQD-A/D

DC AND AC/DC BRUSHLESS CENTRIFUGAL SOLAR PUMP

1	OUTLET	11	STATOR	21	IMPELLER
2	O-RING	12	LOWER COVER	22	PUMP FRAME
3	UPPER BUCKLE	13	OIL CUP	23	SHAFT SLEEVE
4	PUMP SHAFT	14	OILER CAP	24	BRACKET
5	CABLE LAYERING	15	JUMP RING	25	RABBER BEARING
6	COUPLING	16	VALVE ELEMENT	26	INLET
7	LOWER BUCKLE	17	VALVE SEAT	27	NET BAR
8	MECHANICAL SEAL	18	CABLE	28	JILT SAND SEAT
9	BEARING	19	DIFFUSER	29	OIL CYLINDER
10	ROTOR	20	WEARPROOF RING	30	O-RING
				31	MOTOR FRAME

Feature And Application Of 4inch AC/DC 750W-2200W DEEP WELL STAINLESS STEEL IMPELLER SOLAR PUMP：

MPPT solar pump inverter,the highest solar utilization rate

Waterproof and sealed:double sealing effect,Alloy mechanical seal,
long life and reliable operation

Digital display of power,voltage,current, speed and other working conditions

High/low voltage protection,
Over current/overload protection

HOW TO CHOOSE A PUMP

Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?

Compare your requirement with our product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.

Calculate Method:
Actual Pump Head:H1+H2+H3

--------------------------------------

For Example:

H1=10m    H2=30m     H3=50m

H=H1+H2+H3/10

Actual Pump Head is 45m

PRODUCT PACKAGING

What we get for you:(Package Include)

- 1 x4inch AC/DC 750W-2200W  DEEP WELL STAINLESS STEEL IMPELLER  SOLAR PUMP with one 2m blue flat cable
- 1 x Pump controler with MPPT function
- 1 x float switch (sensor for tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof

What You need to get by yourself:(Package DO NOT Include)

- Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.
- Poly pipe from pump to water tank. ( recommend  0.75inch or over diameter poly pipe)
- Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.

PACKAGING PROCESS

CONTROLLER INTERNAL WIRING DIAGRAM

HOW TO CHOOSE SOLAR PANEL

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 3JDC4-20-24-200 model matches the solar panel voltage between 16V～50V.

4JDS14-32-110-750-A/D

4JDS14-45-150-1100-A/D

4JDS14-70-200-1500-A/D

4JDS14-100-200-2200-A/D

FAQ:

Q1 What's your MOQ?
A:Trial sample order is OK.

---

Q2 What's your payment terms?

A: T/T, L/C, D/P.

---

Q3 What is the delivery time?

A: Sample order needs 5-10 days, mass quantity order needs 25-30 days after receiving your advanced deposit.

---

Q4 Can I do OEM brand?

A:Yes, welcome your OEM.

---

Q5 How to buy our 4inch AC/DC 750W-2200W  DEEP WELL STAINLESS STEEL IMPELLER  SOLAR PUMP ?

A: Some information need to know:
(1)Application;
(2)Average water consumption;
(3)Max. head(the height from the lowest water source to the storage tank.)
(4)That's complicated, just contact me.
